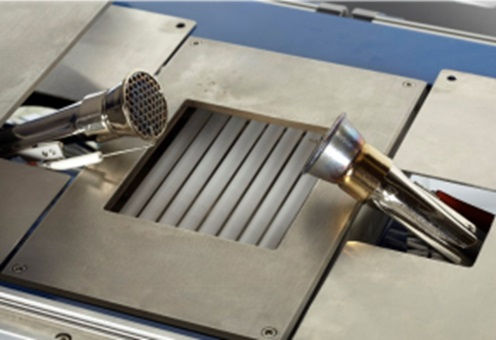

TPP Test Device Thermal Protection Performance Tester

    • TPP Test Device Thermal Protection Performance Tester

    It is used to test the time it takes for thermal convection and thermal radiation to penetrate a piece of composite material until it damages the human skin. It is used to test the thermal protection performance of protective clothing, safety shoes, gloves, helmets, etc., under the action of a predetermined thermal radiation heat source , Test the thermal protection performance of the material.

    • Features:

      • The heat radiation panel is equipped with 9 built-in quartz infrared bulbs (500W)
      • Propane burner (2 pcs ) with flame detection automatic ignition, and heat flow controller included
      • The sample holder and water-cooled plate can be moved pneumatically
      • Emergency switch can cut off the gas source and light bulb power
      • The software has a built-in safety lock to monitor the cooling water flow, the position of the sample holder and the ignition device of the flame nozzle
      • Temperature test accuracy ±0.75ºC , heat radiation flow test accuracy ±3%

    • 符合標準:

      ASTM F 2700 / F 2703

      CAN / CGSB 155.20

      ISO 17492

      NFPA 1971 / 1977 / 2112
