TEXTEST FX 3500 CombiScan introduced into the Taiwan market

We proudly announce, for a long term work and effort, TEXTEST FX 3500 CombiScan has already successfully applied in our valuable client.

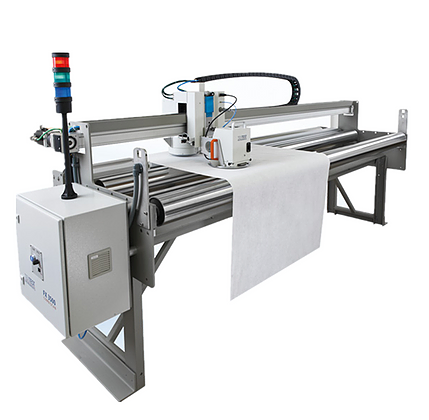

TEXTEST FX 3500 CombiScan Continuously measures the air permeability and/or thickness of fabrics, non-wovens, felts, films and paper maker cloth at the moving web directly in the production line. On-line testing directly in the production line saves time and money.

Special features

  • Wide measuring ranges: air permeability: 1 – 5’000 mm/s (0.2 – 1’000 ft³/ft²/min), thickness: 0 – 6 mm.

  • High measuring accuracy.

  • Measures cross profiles, length profiles and zigzag profiles.

  • Handles web speeds of up to 200 m/min (660 ft/min). (!)

  • High resolution of up to 1 mm test point pitch.

  • The modular system adapts easily to the requirements of the production line.

  • Calibratable.
